* Image for illustrative purpose only PSB010K2 - Multi-level terminal block
Number of poles: 2, Clamp tightening, 17.5A, 1mm², 16AWG, 750V, Pitch 10 mm, Modular, Connection Angle 0°, Number of levels: 2, Green (RAL 6032), Soldering technology Wave, UL, IEC
Number of poles: 2
Number of levels: 2
Sides configuration: Modular
Pitch: 10 mm
Voltage: 750 V
Current : 17.5 A
Wire section: 0.05 ÷ 1.5 mm² / 30 ÷ 16 AWG
Available approvals: UL, IEC
LOWApproved wire section up to 1,5 mm² (14 AWG)
Approved wire section up to 1,5 mm² (14 AWG)
MEDIUM
Approved wire section up to 2,5 mm² (12 AWG)
Approved wire section up to 2,5 mm² (12 AWG)
HIGH
Approved wire section up to 35 mm² (1 AWG)
Approved wire section up to 35 mm² (1 AWG)
PDF
DOWNLOAD PDF
- General data
- Certifications
- Materials
- Download
General data
Features
Screw dimension
M3
Recommended tightening torque
0.5 Nm
Stripping length
6 mm
Operating temperature range
-40°C ÷ 105°C
Contact resistance
<15 mOhm
Insulation resistance
>1 GOhm
Certifications
IEC (n.EN60998)
Rated voltage
750 V
Nominal current
17.5 A
Wire section
1.5 mm²
Tightening torque
0.5 NM
Insulating category
I
UL (n.E167473)
Usage Group
B
C
D*
Rated voltage
600 V
300 V
600 V
Nominal current
13.5 A
Wire section
16 AWG
* These limited ratings are applicable to a terminal block for use in or with industrial control equipment whereby the load on any single circuit of the terminal block does not exceed 15A at 51-150V, 10A at 151-300V, or 5A at 301-600V, or the maximum ampere rating, whichever is less.
Materials
Components
Screw material
Nickel-plated copper alloy
Terminal contact
Nickel and tin on copper alloy
Clamp tightening
Nickel-plated copper alloy
Insulating housing material
PA Polyamide
Insulating material group
I (CTI >= 600V)
Self-extinguishing class UL94
V0
Available colors
green
(similar to RAL 6032)
black
(similar to RAL 9005)
light grey
(similar to RAL 7035)
dark gray
(similar to RAL 7040)
orange
(similar to RAL 2003)
blue
(similar to RAL 5012)
red
(similar to RAL 3017)
another colors
(on demand)
0 items were found with these search filters
Hello Giuli!!!
Drawings

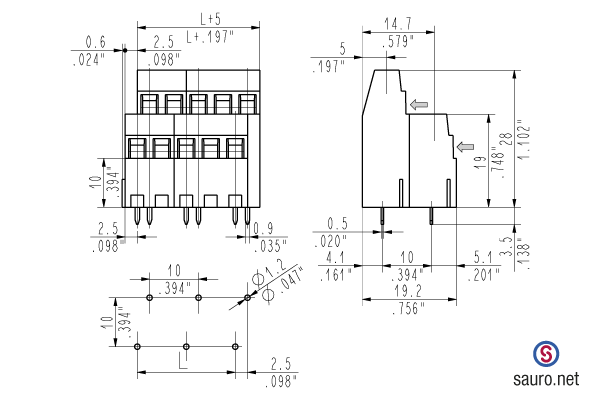

Technical drawing
