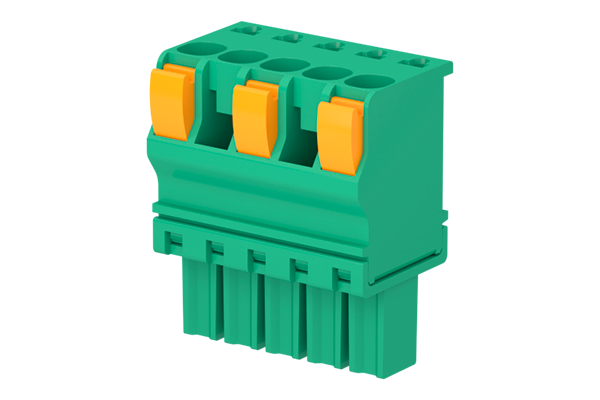

CBF020L7 - Plug

Number of poles: 2, Spring tightening, 9A, 1.5mm², 14AWG, 300V, Pitch 7,62 mm, A, Wiring mode Left, Green (RAL 6032), Soldering technology Not applicable, UL, CUL, IEC

Number of poles: 2

Number of levels: 1

Sides configuration: Side stackable

Pitch: 7,62 mm

Voltage: 300 V

Current : 9 A

Wire section: 0.05 ÷ 1.5 mm² / 30 ÷ 14 AWG

Available approvals: UL, CUL, IEC

PDF
  • General data
  • Certifications
  • Materials
  • Download
General data
Features
Screw dimension
na
Stripping length
11.5 mm
Operating temperature range
-40°C ÷ 115°C
Contact resistance
<15 mOhm
Insulation resistance
>1 GOhm
Certifications
CUL (n.E167473)
Rated voltage
300 V
Nominal current
9 A
Wire section
14 AWG
Insulating category
I
IEC (n.EN61984)
Rated voltage
300 V
Nominal current
8 A
Wire section
1.5 mm²
Insulating category
I
Overvoltage category/Pollution degree
III/3
III/2
II/2
Impulse voltage
4kV
4kV
4kV
Rated voltage
300V
300V
600V
Insulation voltage
320V
320V
630V
UL (n.E167473)
Nominal current
9 A
Wire section
14 AWG
Materials
Components
Spring contact
Tin-plated copper alloy
Spring tightening
Stainless steel
Insulating housing material
PA Polyamide
Insulating material group
I (CTI >= 600V)
Available colors
green
(similar to RAL 6032)
black
(similar to RAL 9005)
light grey
(similar to RAL 7035)
dark gray
(similar to RAL 7040)
orange
(similar to RAL 2003)
blue
(similar to RAL 5012)
red
(similar to RAL 3017)
another colors
(on demand)
Drawings
PathDXF
Download
PathSTP
Download

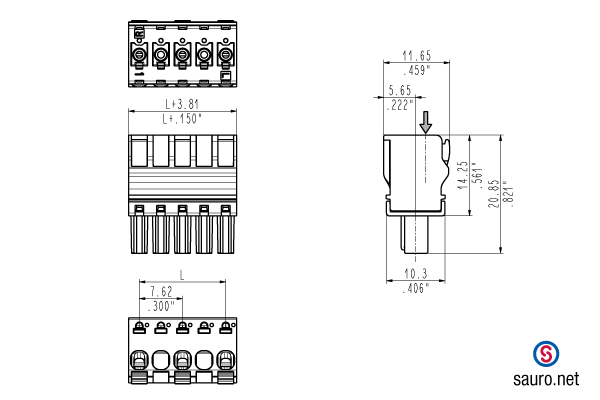

Technical drawing

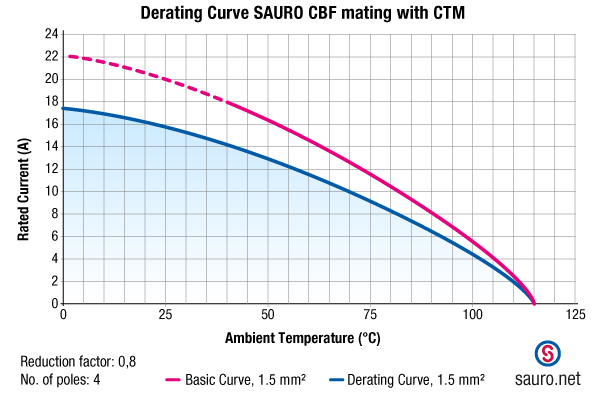

Derating curve
