CBF020D7 - Plug

Number of poles: 2, Spring tightening, 9A, 1.5mm², 14AWG, 300V, Pitch 7,62 mm, Flanges, Wiring mode Right, Green (RAL 6032), Soldering technology Not applicable, UL, CUL, IEC

Number of poles: 2

Number of levels: 1

Sides configuration: Flanges

Pitch: 7,62 mm

Voltage: 300 V

Current : 9 A

Wire section: 0.05 ÷ 1.5 mm² / 30 ÷ 14 AWG

Available approvals: UL, CUL, IEC

LOWApproved wire section up to 1,5 mm² (14 AWG)
MEDIUMApproved wire section up to 2,5 mm² (12 AWG)
HIGHApproved wire section up to 35 mm² (1 AWG)
PDF
  • General data
  • Certifications
  • Materials
  • Download
General data
Features
Stripping length
11.5 mm
Operating temperature range
-40°C ÷ 105°C
Contact resistance
<15 mOhm
Insulation resistance
>1 GOhm
Certifications
CUL (n.E167473)
Rated voltage
300 V
Nominal current
9 A
Wire section
14 AWG
Insulating category
I
IEC (n.EN61984)
Rated voltage
300 V
Nominal current
8 A
Wire section
1.5 mm²
Insulating category
I
Overvoltage category/Pollution degree
III/3
III/2
II/2
Impulse voltage
4kV
4kV
4kV
Rated voltage
300V
300V
600V
Insulation voltage
320V
320V
630V
UL (n.E167473)
Usage Group
B
C
D
Rated voltage
-
-
-
Nominal current
9 A
Wire section
14 AWG
Insulating category
I
Materials
Components
Spring contact
Tin-plated copper alloy
Spring tightening
Stainless steel
Insulating housing material
PA Polyamide
Insulating material group
I (CTI >= 600V)
Self-extinguishing class UL94
V0
Available colors
green
(similar to RAL 6032)
black
(similar to RAL 9005)
light grey
(similar to RAL 7035)
dark gray
(similar to RAL 7040)
orange
(similar to RAL 2003)
blue
(similar to RAL 5012)
red
(similar to RAL 3017)
another colors
(on demand)

2560 items were found with these search filters

Hello Giuli!!!

Drawings
Path Download DXF
Download
Path Download STP
Download

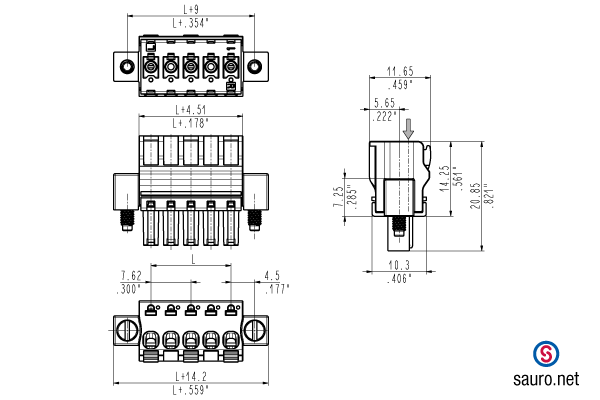

Technical drawing

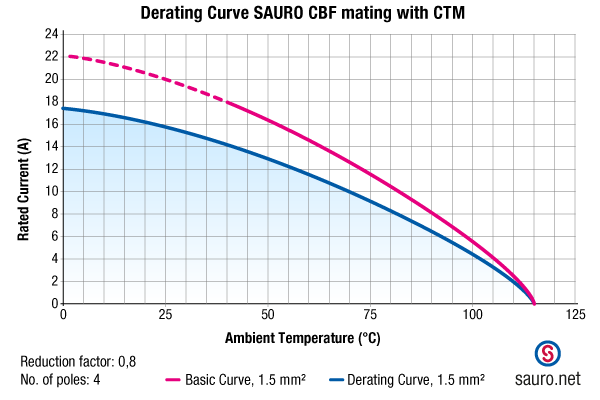

Derating curve
